IM30
Self-service
Αndroid POS

IM30

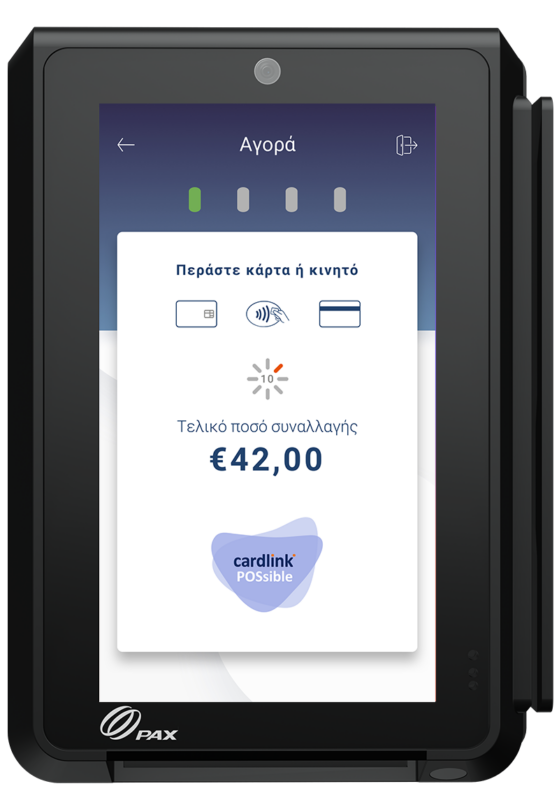

All-in-one self-service POS

IM30 is a brand new all-in-one self-service payment terminal designed to increase unattended sales, implement flawless security and be impervious to environmental damage.

Exceptional performance and high reliability on all payment methods

Contactless payments

Accept every kind of contactless payment safely & fast. Pay with your card, your phone or smart watch.

Payments with Chip & PIN cards

Insert Chip & PIN cards and complete the sale in just a few seconds. The cardholder can easily tap or insert a card and insert the PIN code.

Magnetic stripe cards

Get payments safely and easily with a simple “swipe” at the side of your business POS device

Features

Basic
Features

Display

Software

Processor

5" HD Display

5” TFT WXGA 720 x 1280

Get quote

Exceptional performance

Cardlink POSsible payment app
Android operating system

Get quote

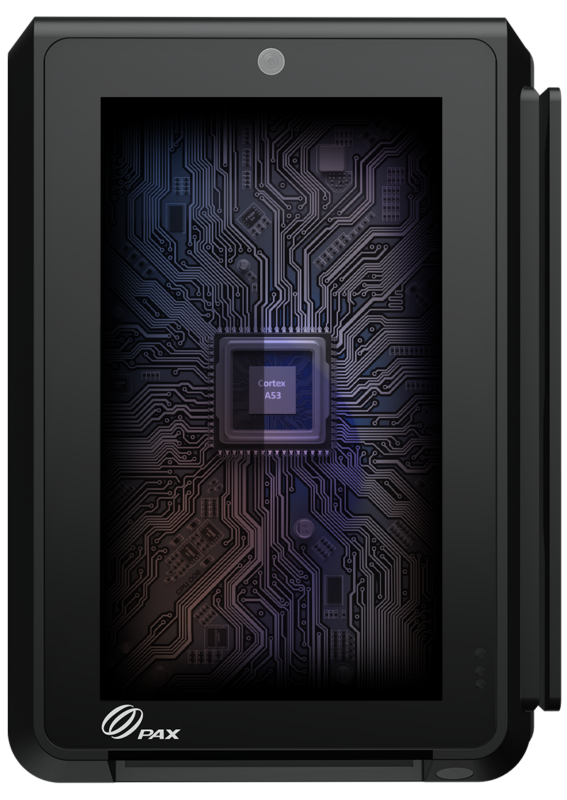

Powerful processor

Quad-core Cortex A53 1.2GHz

Get quote

Technical specifications

Display

5” TFT WXGA 720 x 1280
IPS Brightness > 600 nits
Anti-glare

Cardlink POSsible Software

Processor

Quad-core Cortex A53, 1.2GHz

Memory

8GB Flash + 1GB LPDDR3 RAM
Optional: 2GB LPDDR3 RAM

Physical

External dimension: W * H * D: 105 * 146 *57 mm
Installation cutout: W * H: 82 * 107 mm
Weight: 486g

Camera

2MP Front-Facing

Power

12V – 48V DC via MDB Slave
12V – 48V DC via RS232
19V – 30V AC via Executive

Peripheral Ports

2 RS232
1 USB Host
1 USB OTG
1 LAN
1 MDB Slave
1 HDMI
1 Digital I/Os
1 Mic & Speaker
1 MDB Master & Executive
1 SMA (optional)
1 SIM slot (optional)

Communications

LAN
Bluetooth 5.0 & 5GHz WiFi (optional)
4G (optional)

Certifications

PCI PTS 5.x, SRED
EMV L1 & L2
EMV Contactless L1
Master Card Contactless
Visa payWave
American ExpressPay
Discover D-PAS
MasterCard TQM
Ιnterac Flash L2
J/Speedy L2
FCC
IC
UL
RoHs
CE
CSEC
APCA
